Popis
OMEGA dual-element thermocouple assemblies are manufactured using 4-conductor OMEGACLAD wire, and feature rugged DTC connector terminations. Either 304 SS or Inconel sheaths are available in sizes from 1/16 to 1/4″ O.D., with either grounded, ungrounded or exposed junctions. Standard length is 12″, with other lengths available.

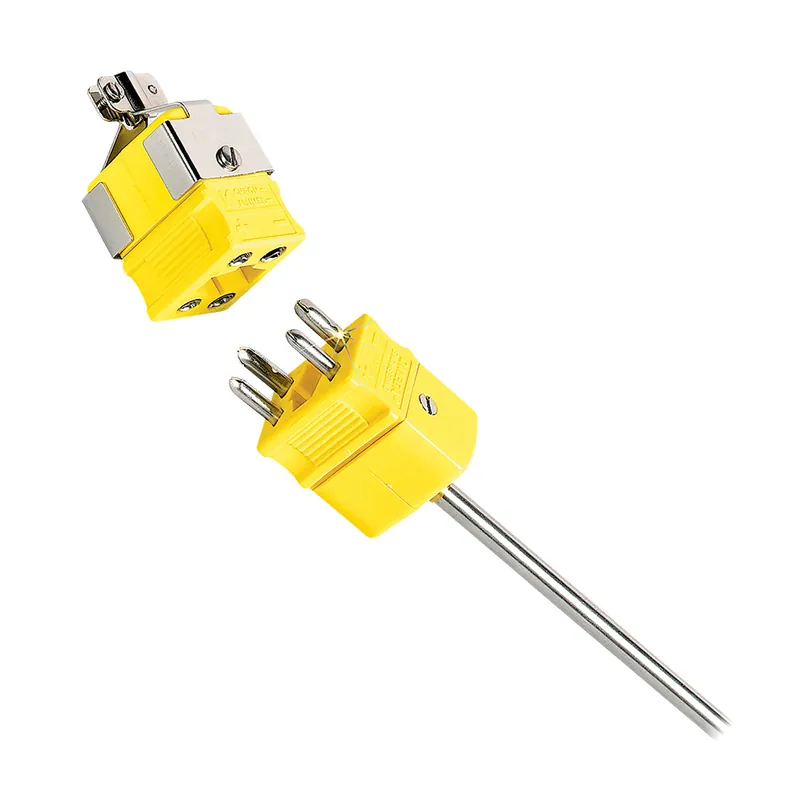

DTC Type Dual Connector Mating Connector Sold Separately.
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Table:
| Thermocouple Alloy |
Sheath Dia. mm (in.) |
Grounded Junction |
Ungrounded Junction |
Exposed Junction |
| J IRON-CONSTANTAN Inconel Sheath |
1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) |
ICIN-116G-12-DUAL ICIN-18G-12-DUAL ICIN-316G-12-DUAL ICIN-14G-12-DUAL |
ICIN-116U-12-DUAL ICIN-18U-12-DUAL ICIN-316U-12-DUAL ICIN-14U-12-DUAL |
ICIN-116E-12-DUAL ICIN-18E-12-DUAL ICIN-316E-12-DUAL ICIN-14E-12-DUAL |
| J IRON-CONSTANTAN 304 SS Sheath |
1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) |
ICSS-116G-12-DUAL ICSS-18G-12-DUAL ICSS-316G-12-DUAL ICSS-14G-12-DUAL |
ICSS-116U-12-DUAL ICSS-18U-12-DUAL ICSS-316U-12-DUAL ICSS-14U-12-DUAL |
ICSS-116E-12-DUAL ICSS-18E-12-DUAL ICSS-316E-12-DUAL ICSS-14E-12-DUAL |
| K CHROMEGA-ALOMEGA Inconel Sheath |
1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) |
CAIN-116G-12-DUAL CAIN-18G-12-DUAL CAIN-316G-12-DUAL CAIN-14G-12-DUAL |
CAIN-116U-12-DUAL CAIN-18U-12-DUAL CAIN-316U-12-DUAL CAIN-14U-12-DUAL |
CAIN-116E-12-DUAL CAIN-18E-12-DUAL CAIN-316E-12-DUAL CAIN-14E-12-DUAL |
| K CHROMEGA-ALOMEGA 304 SS Sheath |
1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) |
CASS-116G-12-DUAL CASS-18G-12-DUAL CASS-316G-12-DUAL CASS-14G-12-DUAL |
CASS-116U-12-DUAL CASS-18U-12-DUAL CASS-316U-12-DUAL CASS-14U-12-DUAL |
CASS-116E-12-DUAL CASS-18E-12-DUAL CASS-316E-12-DUAL CASS-14E-12-DUAL |
| E CHROMEGA-CONSTANTAN Inconel Sheath |
1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) |
CXIN-116G-12-DUAL CXIN-18G-12-DUAL CXIN-316G-12-DUAL CXIN-14G-12-DUAL |
CXIN-116U-12-DUAL CXIN-18U-12-DUAL CXIN-316U-12-DUAL CXIN-14U-12-DUAL |
CXIN-116E-12-DUAL CXIN-18E-12-DUAL CXIN-316E-12-DUAL CXIN-14E-12-DUAL |
| E CHROMEGA-CONSTANTAN 304 SS Sheath |
1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) |
CXSS-116G-12-DUAL CXSS-18G-12-DUAL CXSS-316G-12-DUAL CXSS-14G-12-DUAL |
CXSS-116U-12-DUAL CXSS-18U-12-DUAL CXSS-316U-12-DUAL CXSS-14U-12-DUAL |
CXSS-116E-12-DUAL CXSS-18E-12-DUAL CXSS-316E-12-DUAL CXSS-14E-12-DUAL |
| T COPPER-CONSTANTAN Inconel Sheath |
1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) |
CPIN-116G-12-DUAL CPIN-18G-12-DUAL CPIN-316G-12-DUAL CPIN-14G-12-DUAL |
CPIN-116U-12-DUAL CPIN-18U-12-DUAL CPIN-316U-12-DUAL CPIN-14U-12-DUAL |
CPIN-116E-12-DUAL CPIN-18E-12-DUAL CPIN-316E-12-DUAL CPIN-14E-12-DUAL |
| T COPPER-CONSTANTAN 304 SS Sheath |
1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) |
CPSS-116G-12-DUAL CPSS-18G-12-DUAL CPSS-316G-12-DUAL CPSS-14G-12-DUAL |
CPSS-116U-12-DUAL CPSS-18U-12-DUAL CPSS-316U-12-DUAL CPSS-14U-12-DUAL |
CPSS-116E-12-DUAL CPSS-18E-12-DUAL CPSS-316E-12-DUAL CPSS-14E-12-DUAL |
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
