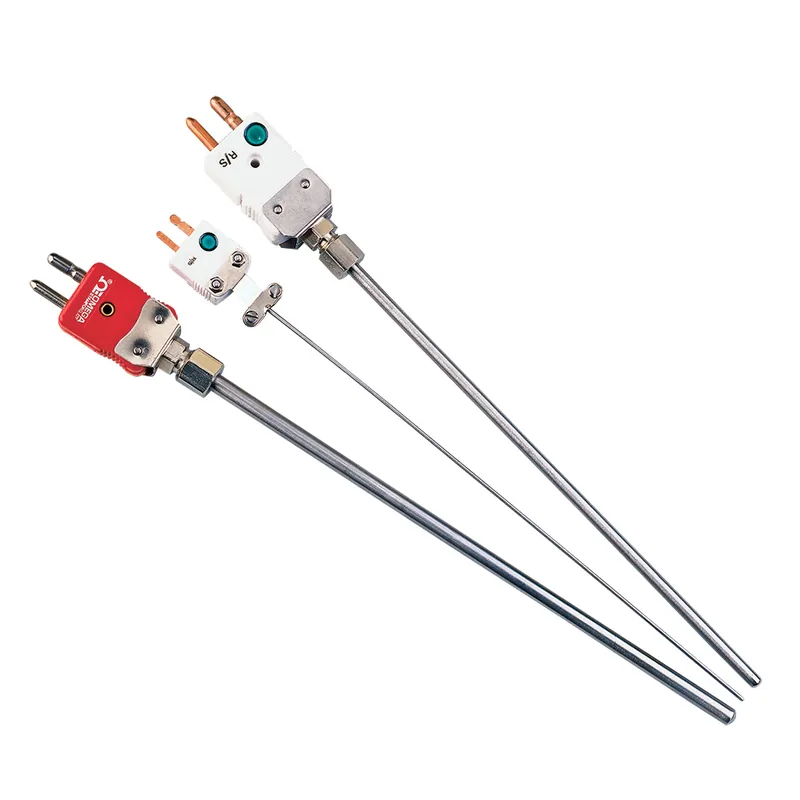

OMEGA Exotic Thermocouple Probes are designed for use in extreme temperatures, up to 2315°C. These probes utilize either Platinum/Rhodium (types R, S, or B) or Tungsten/Rhenium (types G, C, or D) elements, with a variety of insulations and sheath materials. Depending upon the sheath material selected, these probes may be used in inert, oxidizing, reducing or vacuum conditions. The maximum temperature is based on the lowest max. temperature of the element, insulation and sheath material. Five cold end probe terminations are available: replacement probe, subminiature or standard size ceramic connector, heavy-duty standard size, molybdenum-sheathed nylon connector, or transition joint with 2 metre long lead wire.
Model: XMO-W5R26-U-125-30-H-HX-6 – type C Thermocouple, diameter 3,2 mm, lenght 15 cm, molybdenum sheath with Hafnia insulation and standard size ceramic connectors
The configuration options of these probes are very wide, contact us for a specific offer.
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
Calibration for temperatures above 1100°C according to individual agreement.
