Popis

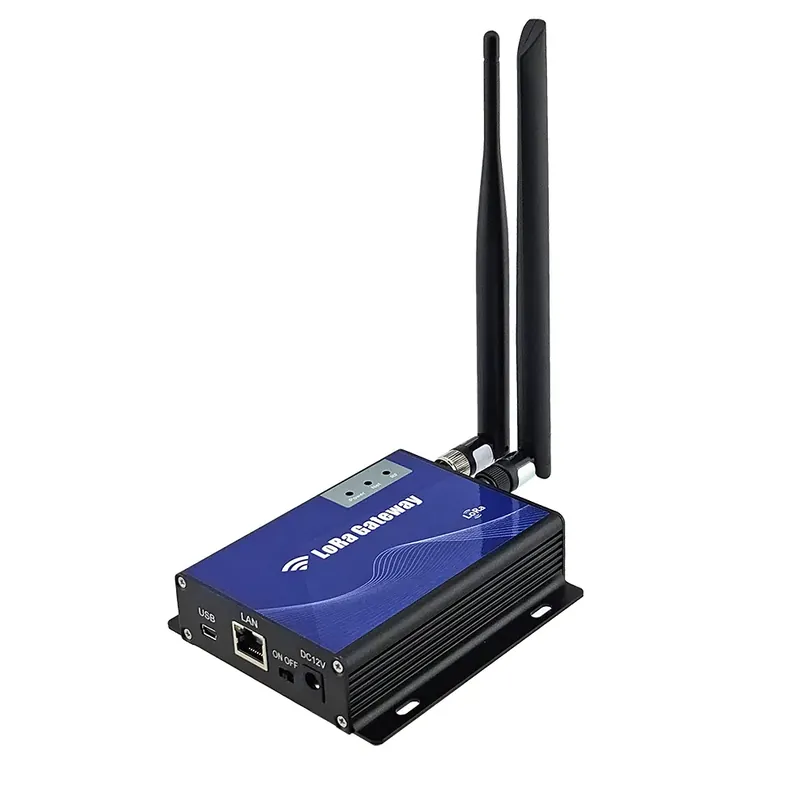

The smart wireless gateway uses proprietary LoRa communication technology for the Internet of Things (IoT), which allows the transmission of measurements from smart wireless sensors of the LR-SS series up to a distance of 5 km with very low power consumption and therefore a very long battery life of the sensors. (3 years when recording every 15 minutes)
You can choose from two versions of the communication gateway. The first option is a communication gateway for connecting to your local LAN network using Ethernet (RJ45) or a wireless Wi-Fi interface (model LR-GW-WIFI-EU). The second option is a communication gateway equipped with a slot for a 4G LTE (5G) SIM card, which allows you to take wireless measurements wherever there is coverage by mobile operators (model LR-GW-LTE-EU). Both versions can also be ordered in a variant with IP66 weather protection.
Wireless measurement with LR-SS series sensors
One LR-GW series wireless gateway can connect up to 100 wireless sensors.
Available are temperature and relative humidity sensors (LR-SS-TG08B-EU), temperature sensors with external probe (LR-SS-TG08-EU), and sensors with external input for type K thermocouple temperature measurement (LR-SS-TG09-EU), see related products.
SPECIFICATIONS:
Power: 12 Vdc (AC adapter included)
Range: up to 5 km (open area)
RF frequency: 868 MHz
Modulation: LoRa
Interface: Ethernet and Wi-Fi or 4G LTE
Antenna type: external
Operating environment: -20 to 60°C; 5 to 95°RH non-condensing
Protection: none (optional IP66 with internal antennas)
Software: Windows 10/11 compatible (for configuration via USB)
Dimensions: 112 mm x 105 mm x 27 mm
Weight: 270 g
