The 88000 series roller surface probes provides a means of measuring moving surfaces without stopping the process. Equipped with rollers these probes can obtain a temperature while a surface remains in motion.
Replacement elements for surface probes
High-quality, user-replaceable replacement elements are available for all probes. Replacement elements has been Pre-Aged to assure maximum accuracy. The probe is ready for immediate use after replacement.

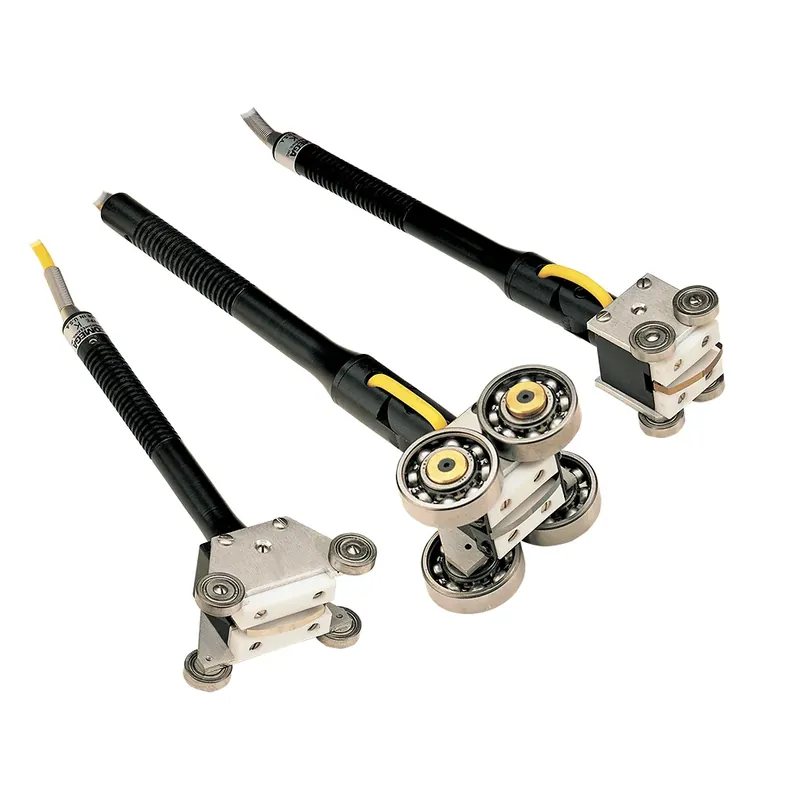

Roller thermocouple probes for moving or rotating surfaces
Model 88201(*) or 98201(*) with Swivel Head
A roller-surface probe, for use on moving or rotating, smooth surfaces with a velocity up to 61 m per minute. Maximum surface temperature of 205°C.
Replaceable Element not supplied, P/N 88201(*)-RE.
Model 88202(*) or 98202(*) with Swivel Head
A roller-surface probe, ideal for measuring outside wall temperatures of smooth plastic or steel piping. Can be used on moving or rotating surfaces of 559 to 1524 mm in diameter, with 90 m per minute maximum surface velocity. Maximum surface temperature of 205°C.
Replaceable Element not supplied, P/N 88202(*)-RE.
Model 88203(*) or 98203(*) with Swivel Head
For rotating, smooth metallic surfaces of 229 to 610 mm in diameter. 90 m per minute maximum surface velocity. Maximum surface temperature of 205°C.
Replaceable Element not supplied, P/N 88203(*)-RE.
* Specify Calibration:
K: CHROMEGA-ALOMEGA
E: CHROMEGA-Constantan
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
